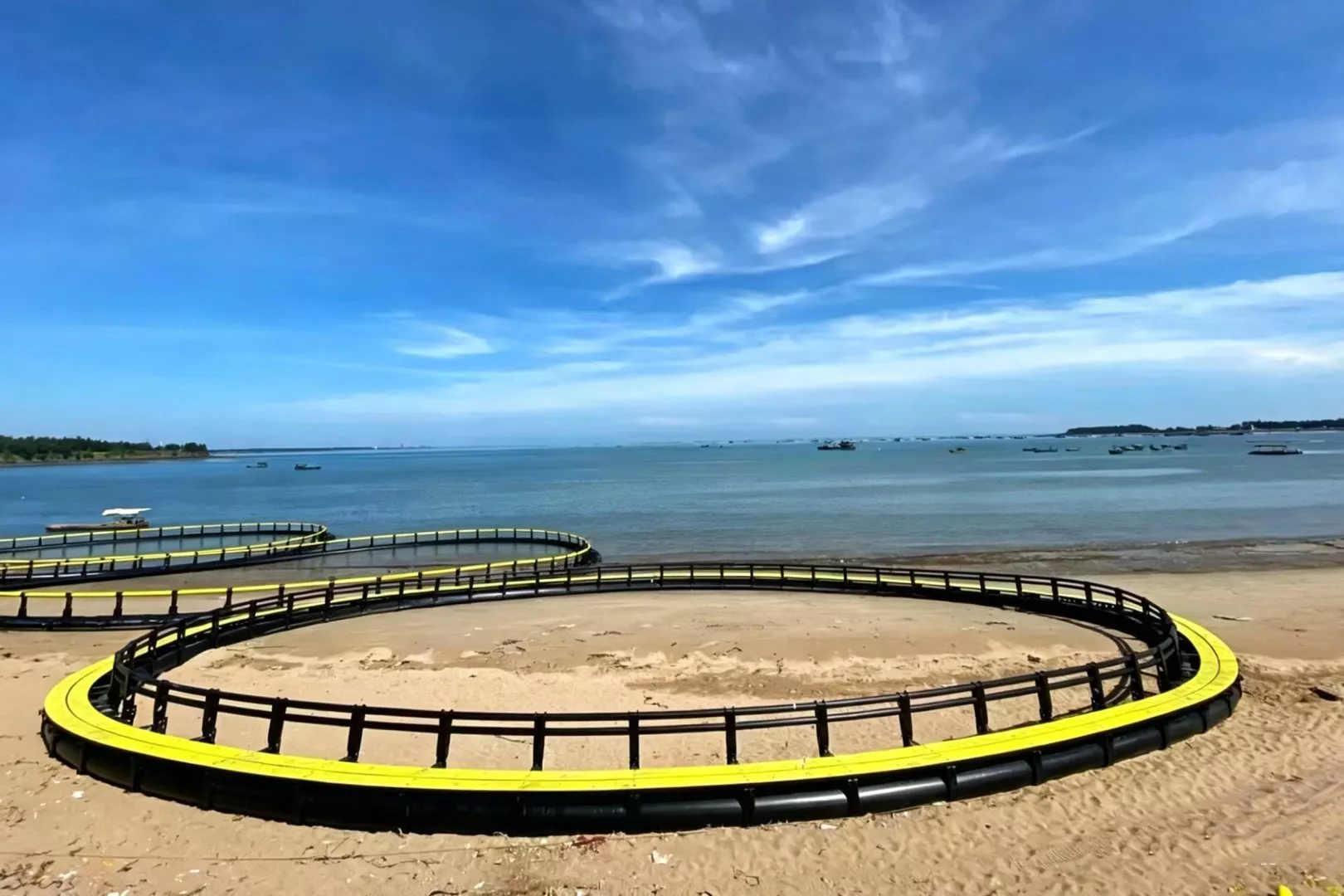

Circular Offshore Aquaculture Cage

Circular Offshore Aquaculture Cage

Main Performance
Wind Resistance Wave Resistance Current Resistance
12 5m 1m/s
Product Technical Specifications
Item Technical Requirements Control Indicators Tensile Yield Strength
Tensile Yield Strength/MPa GB/T8804.3 ≥20 ≥21.5
Elongation at Break/% GB/T8804.3 ≥350 ≥350
Longitudinal Shrinkage/% GB/T6671 ≤3.0 ≤3.0
Oxidation Induction Time/min GB/T19466.6 ≥20 ≥25
Flexural Strength/MPa GB/T99341 ≥10 ≥15

Product Details

Specifications and Material List of Circular Floating Cages
Circumference of cage floating frame / m/m Component Name Material Specifications
Material Code Name Average outer diameter of pipe / mm Minimum wall thickness/mm
40/50/60/80 Floating tube Fe80或PE100 SDR 17 250 14.8
280 16.6
60/80/100 SDR 17 315 18.7
80/100/120 SDR 17 355 21.1
100/120/140 SDR 17 400 23.7
120/140 SDR 17 450 26.7
140/160 SDR 17 500 29.7
—— Column SDR 13.6 125 9.2
160 11.8
—— Handrail tube SDR 11 110 10
140 12.7
Note: The perimeter or diameter of the cage refers to the circumference and distance of the center line of the inner floating tube on the floating frame

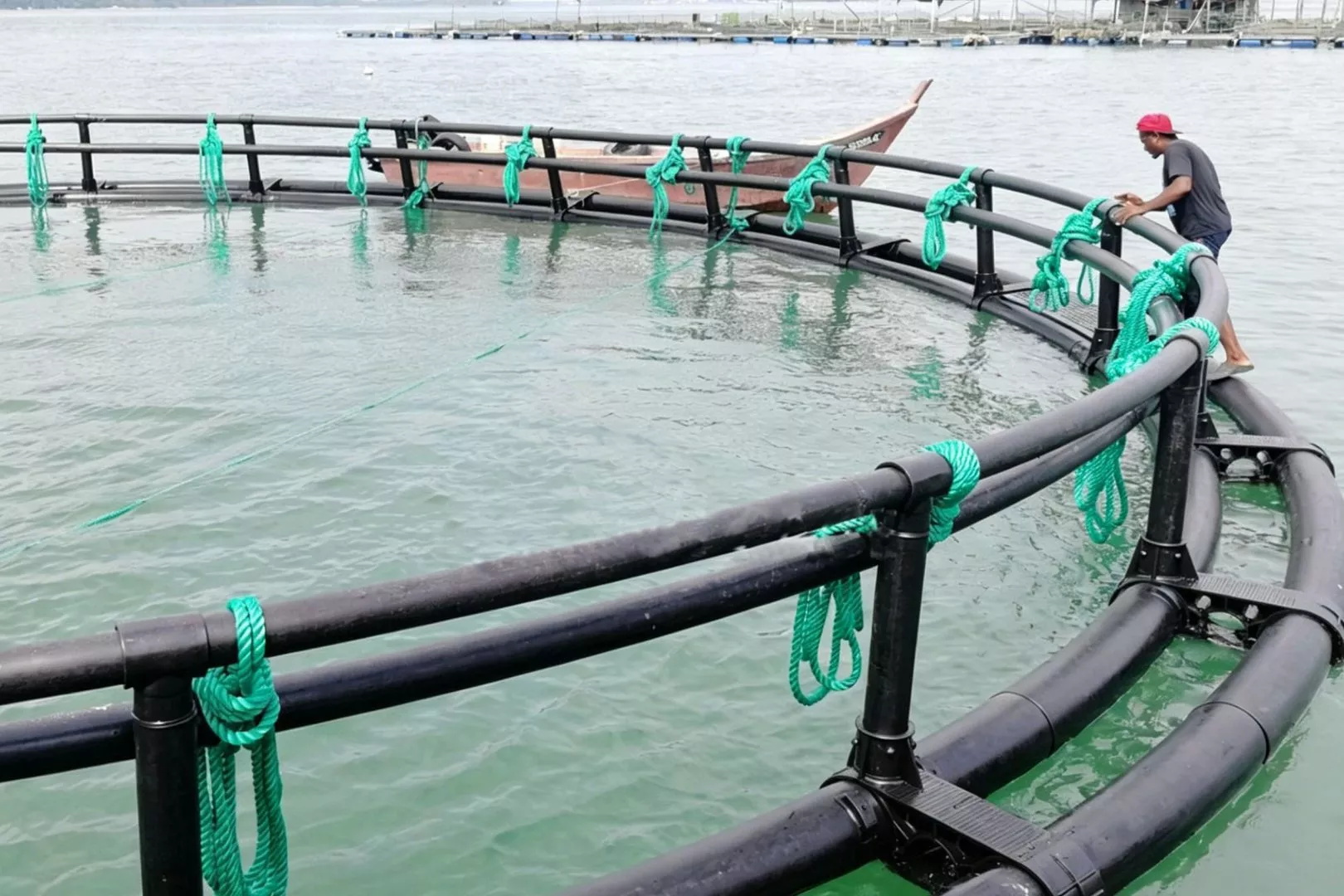

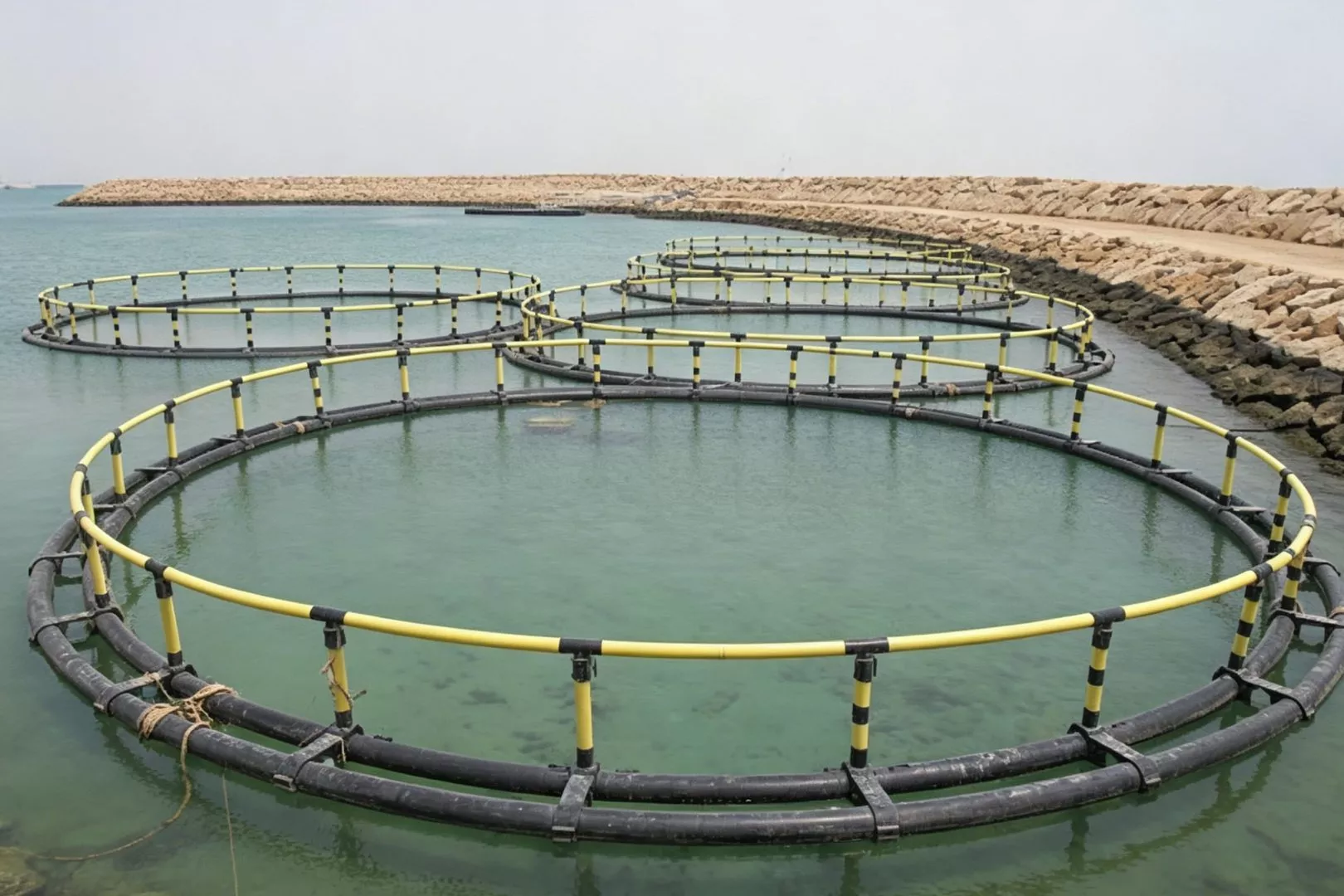

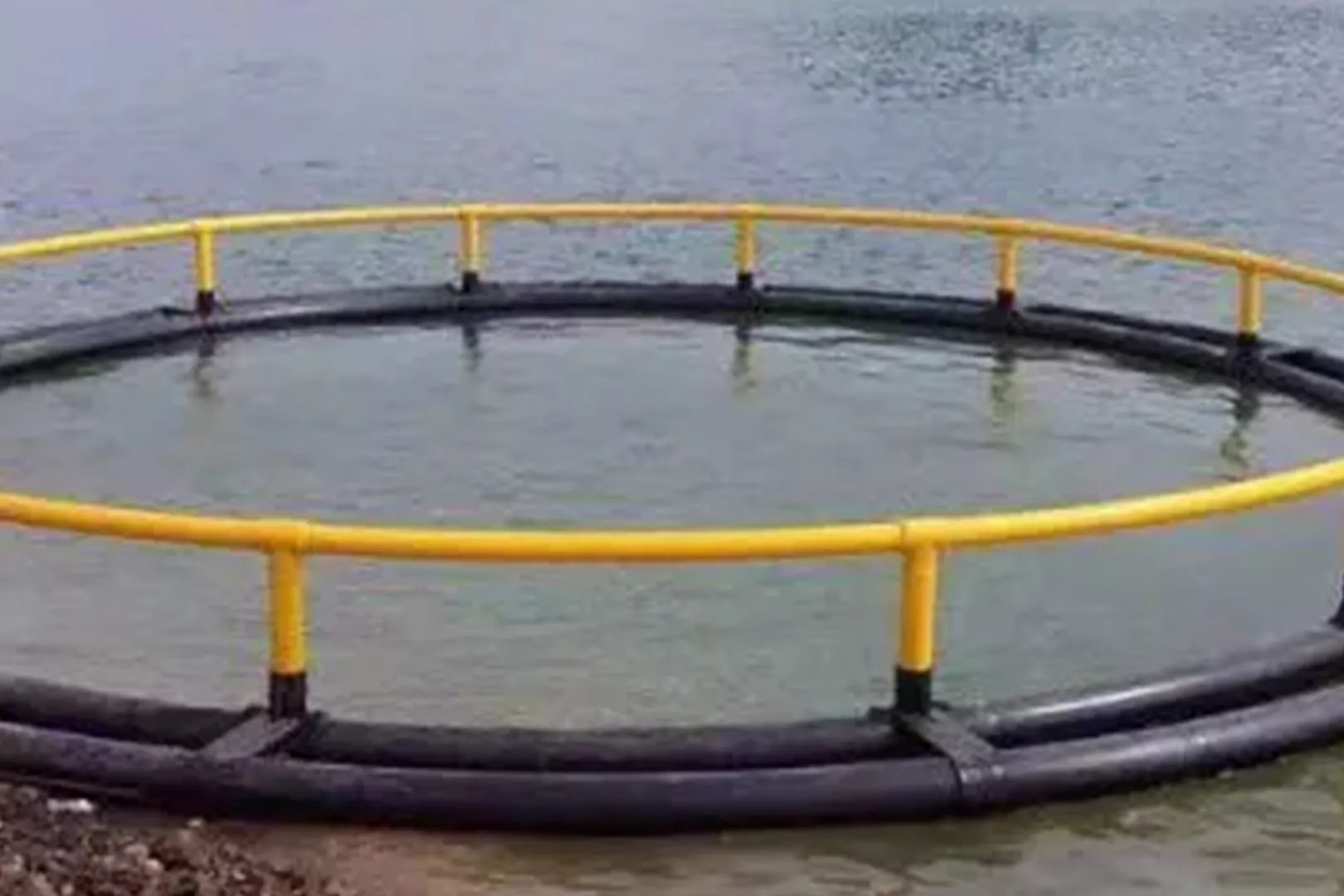

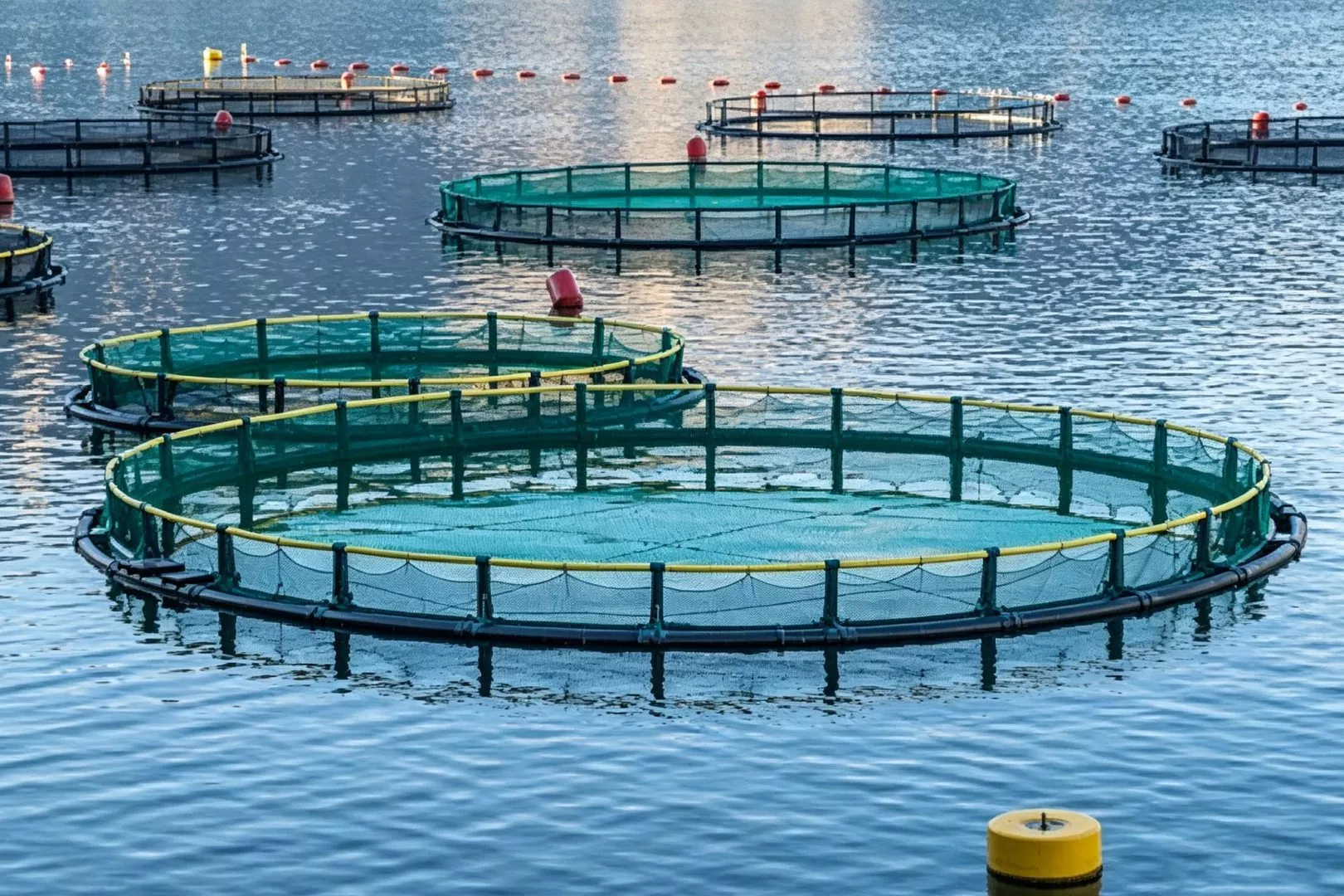

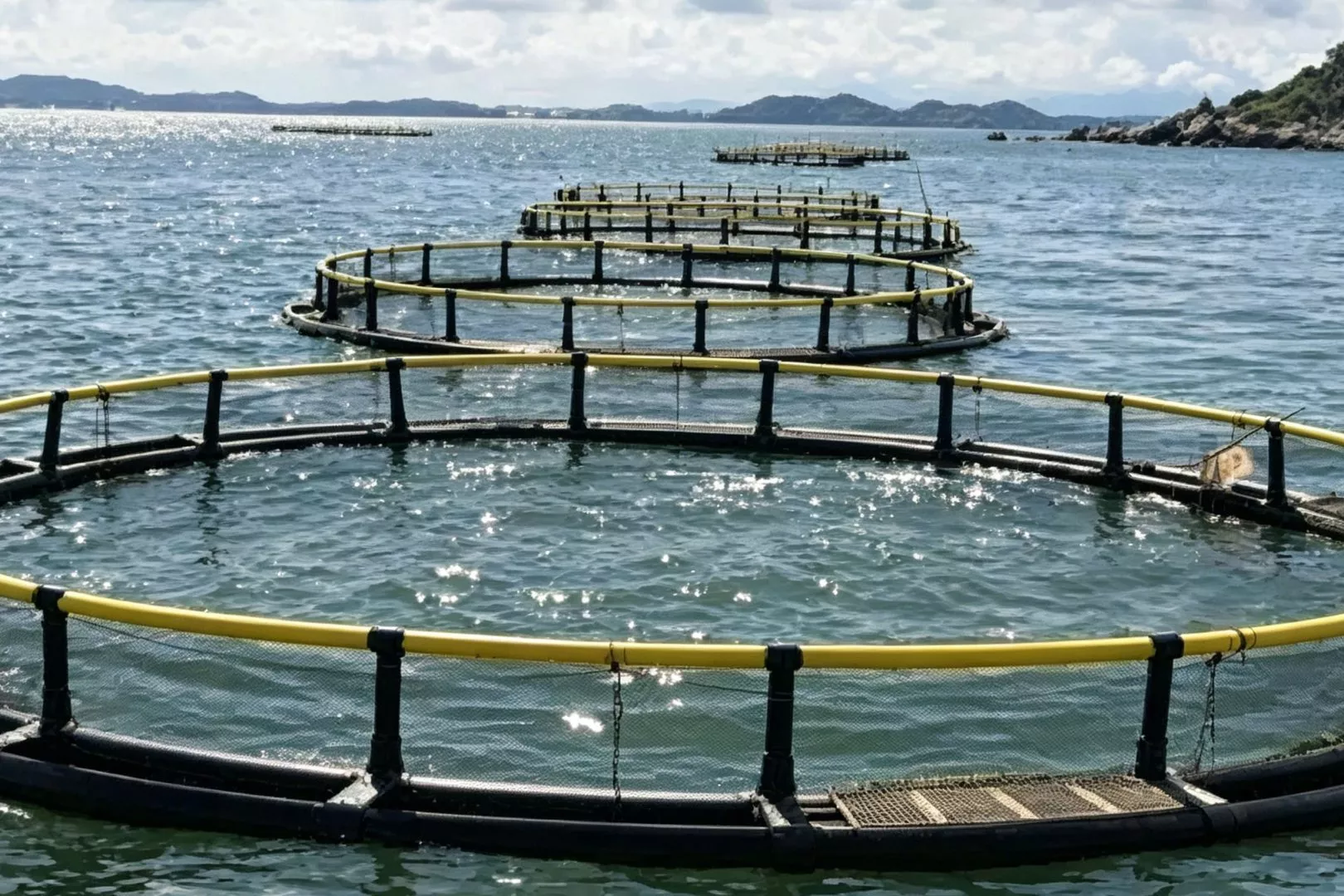

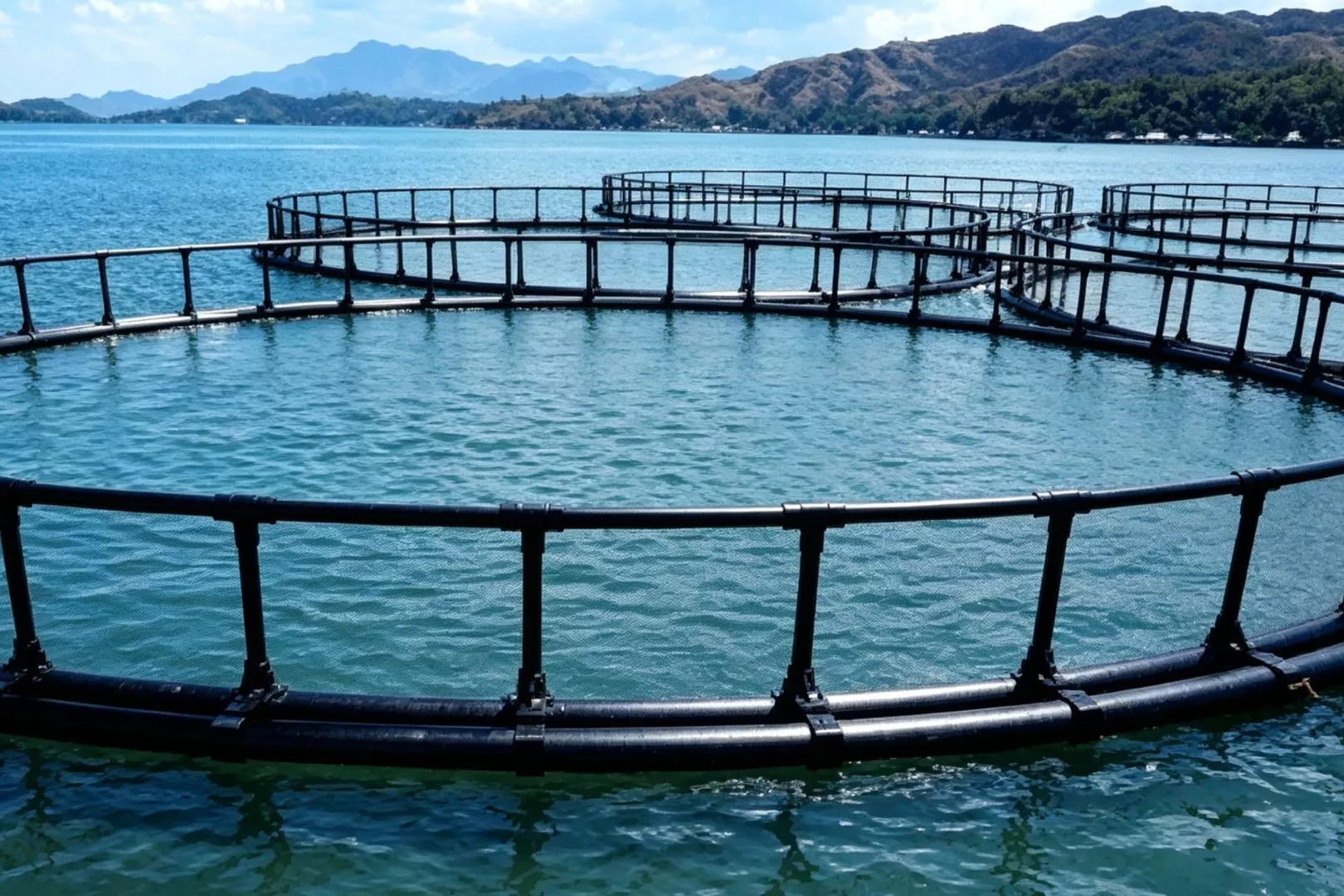

Our Circular Offshore Aquaculture Cage is a mainstream heavy-duty floating cage solution professionally designed for open sea, offshore and deep-water commercial aquaculture. Optimized for harsh marine environments with strong waves, continuous water currents and long-term outdoor submersion, this circular fish cage features superior structural stability compared with traditional square and rectangular cages. It is widely adopted in large-scale offshore farming projects, delivering reliable, low-maintenance and high-yield breeding conditions for global aquaculture operators.

Constructed with premium marine-grade HDPE material, the whole cage frame boasts excellent seawater corrosion resistance, long-term UV stabilization and outstanding anti-aging performance. It effectively resists seawater erosion, sun exposure and tidal impact throughout the year, avoiding deformation, cracking and fading caused by harsh marine weather. The high-strength integrated frame structure maintains stable buoyancy and structural toughness in complex offshore sea conditions, ensuring long-term safe operation without frequent replacement.

The scientific circular structural design is the core advantage of our offshore aquaculture cage. Unlike square cages with vulnerable corner stress points, the fully circular structure evenly disperses wave impact and water flow pressure in all directions. This zero-dead-angle force-bearing design greatly reduces structural load and tearing risk, effectively resisting storms and turbulent currents, and drastically improving the overall anti-wave capacity of the cage system. Meanwhile, the round inner space provides a free and stable activity environment for farmed fish, avoiding fish crowding and friction corners, reducing breeding stress and mortality, and improving aquatic product quality and yield.

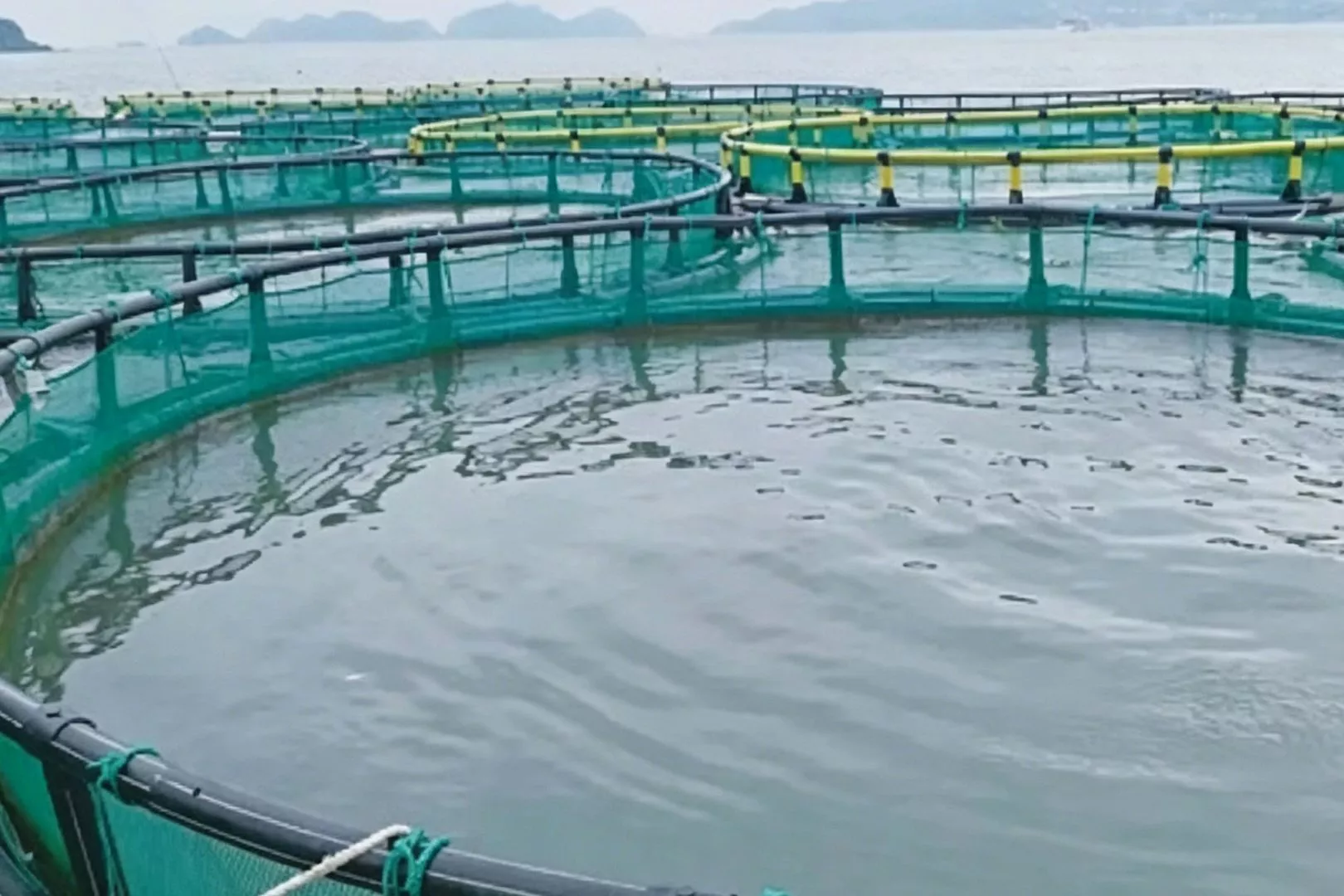

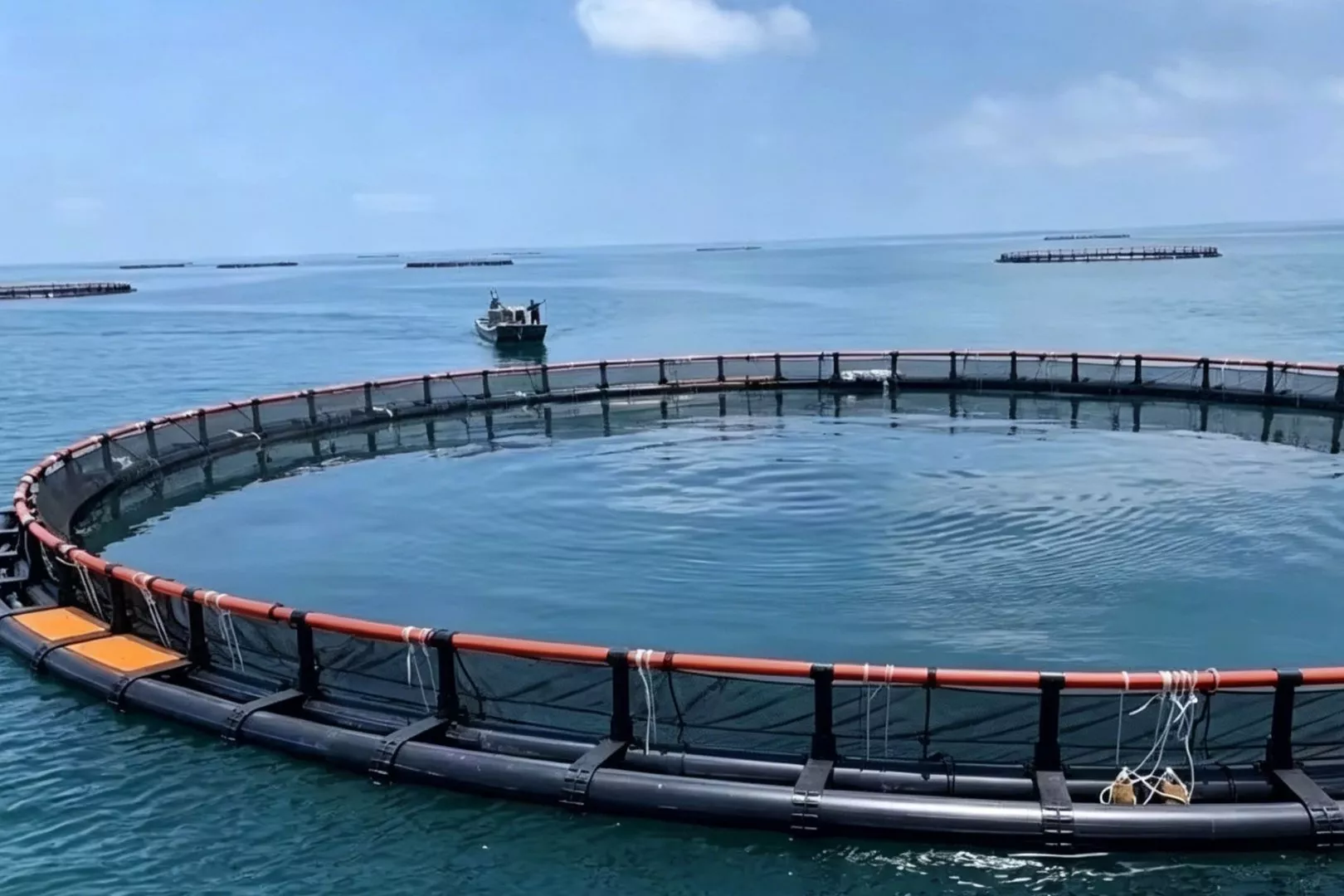

Our circular offshore cage supports matching installation of HDPE and UHMWPE knotless netting to adapt to different sea area conditions and breeding standards. Equipped with standardized non-slip walkway pedals and safety guardrails, the cage platform ensures safe and convenient daily feeding, inspection, cleaning and maintenance. Adopting modular assembly design, the cage is easy to install, disassemble and transport, and supports full customization of cage diameter, floating height, net depth and overall specifications.

Tailored for professional offshore commercial farming, our Circular Offshore Aquaculture Cage combines anti-wave stability, fish-friendly design and low operational cost. It is an ideal long-term aquaculture facility for deep-sea breeding bases, coastal large-scale farms and high-standard marine aquaculture projects worldwide.
